RoteX Aquaculture®

The RoteX™ Aquaculture system is a high-efficiency bleeding and chilling solution that uses controlled flow and precise temperature management to enhance product quality, extend shelf life, and reduce energy consumption in aquaculture processing.

Overview

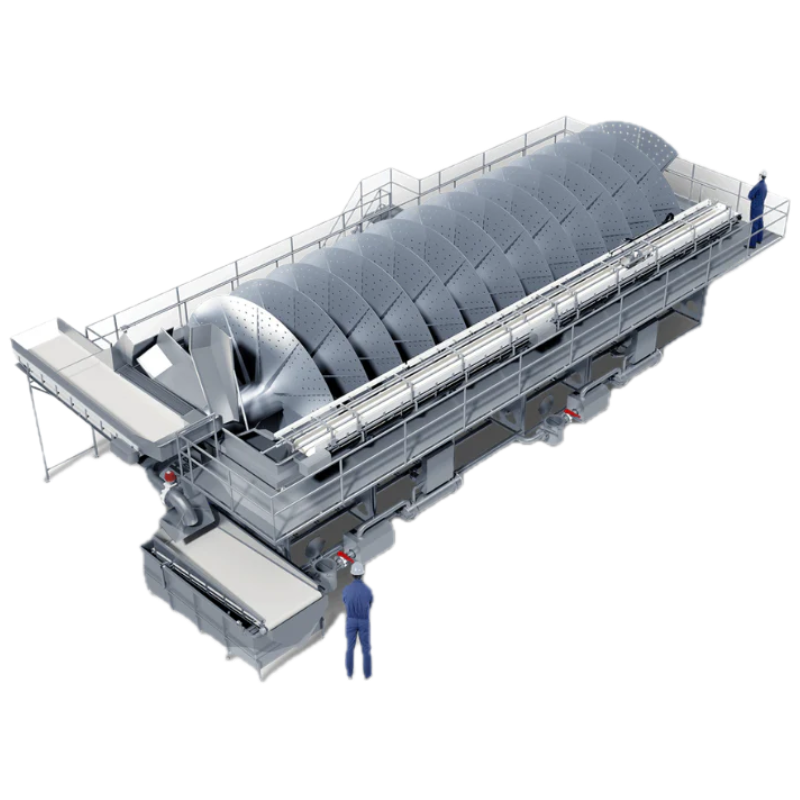

The RoteX™ Aquaculture system is designed for efficient bleeding and rapid chilling, ensuring superior product quality. The system uses controlled flow, with computer-regulated bleeding times and precise temperature control. Patented side injection circulates water or fluid ice, effectively evacuating blood while maintaining a consistent temperature, optimizing chilling and enhancing shelf life.

Why Choose this Product

The RoteX™ Aquaculture system enhances product quality by ensuring consistent bleeding and rapid chilling. Its efficient process extends shelf life, improves product appearance, and reduces energy usage. By using precise control and optimal chilling temperatures, it guarantees that each fish is treated the same, ensuring a consistently superior product.

Industries Served

Aquaculture
Onboard
Onshore

Key Advantages

  • Patented Side Injection circulates water or fluid ice for efficient blood evacuation
  • Precise Temperature Control optimizes chilling to maintain quality and extend shelf life
  • Energy Efficient system reduces energy consumption through controlled bleeding and chilling
  • Flexible Setup allows for customization based on customer requirements
  • Easy Integration with existing or planned processing lines

The challenge it solves

The RoteX™ Aquaculture system addresses the challenges of inconsistent product quality and inefficient processing. By ensuring controlled bleeding and precise chilling, it helps maintain high product quality, reduce spoilage, and extend shelf life.

Unique features

The RoteX™ Aquaculture system is unique due to its patented side injection method, which circulates water or fluid ice more effectively than traditional systems. The system’s flexibility, energy efficiency, and precise control over both bleeding and chilling make it a superior solution compared to other methods in the market.

Technical specifications

Bleeding and Pre-Chilling System Specifications
Outer Dimensions11,000 × 4,500 × 4,800 mm
Tank Volume100.0 m³
Weight28,000 kg
Throughput Up to 76,000 kg/hour (30 min throughput)
Up to 19,000 kg/hour (120 min throughput)
Fillet Buffering and SUBCHILLING™ System Specifications
Outer Dimensions8,000 × 2,300 × 2,400 mm
Tank Volume15.0 m³
Weight25,100 kg
Throughput Up to 12,800 kg/hour (30 min throughput)
Up to 6,400 kg/hour (60 min throughput)
Shared System Specifications
Supply Voltage3 × 400 V + N AC 50 Hz
Electrical Power Usage40.0 kW, 9.0 kW
MaterialAISI 316 stainless steel and other FDA-approved material
Screw TypeStainless steel core module with stainless steel plates, heavy-duty construction
CleaningDoors and valves on tank
IncludedCirculating pump 37 kW, data registration
OptionalFull temperature control, in-feeding conveyor, cooling equipment, CIP cleaning system
Note on Throughput Cooling time is based on the entire tank length.
When loading with a side conveyor, time calculations may vary but throughput remains consistent.
